3D Laser Scanning and Point Clouds
The applications of 3D laser scanning in the construction and architecture sectors are gaining increasing significance, as it has proven to be a powerful method for capturing the real building environment.
The applications of 3D laser scanning in the construction and architecture sectors are gaining increasing significance, as it has proven to be a powerful method for capturing the real building environment.
The focus is particularly on existing structures, as they often lack regular geometric patterns. Additionally, hard-to-reach elements such as facades, roof constructions, or areas unsuitable for manual measurements can be efficiently captured using 3D laser scanning. This proves especially useful when up-to-date architectural plans are unavailable or existing plans are not current and haven't been updated.
With the growing prevalence of Building Information Modeling (BIM) methodology in construction planning, there's a rising demand for BIM models of existing building structures. When dealing with existing structures, documentation akin to that used for new buildings or architectural designs is required. The precise capture of high-resolution 3D data using point clouds facilitates the creation of such documentation.
How does 3D laser scanning work?
The 360° laser scanner is primarily used for existing objects, be it on construction sites or within building interiors, to digitize them. Mounted on a tripod, the scanner performs a complete 360° scan.
During 3D laser scanning, the scanner emits light pulses in all directions. It measures the time taken for these pulses to return to the scanner after reflecting off an object or a wall. Based on these time calculations, the positions of data points are determined. The scanner captures the reflection of the laser beam, defining a point in space.
A wealth of information is derived from the multitude of measurement points, enabling a swift and detailed representation of complex objects. By changing the scanner's position after each scan, a comprehensive measurement of complex objects is achieved, culminating in a detailed representation - the point cloud.

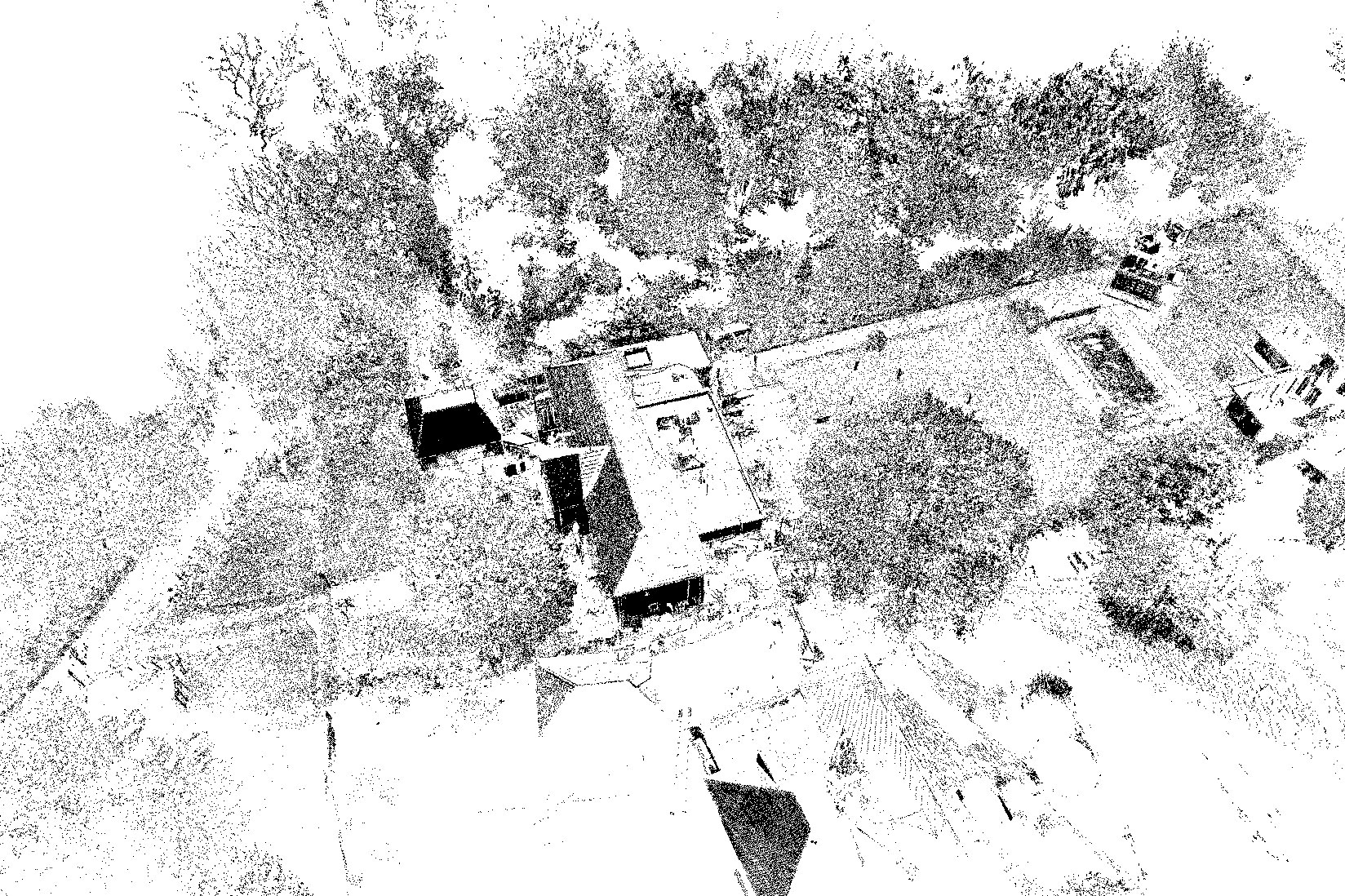

What are point clouds?
In the construction industry, point clouds are utilized to rapidly and accurately gather data about the as-built condition of a structure or construction site. They represent raw data captured and visualized by the 3D scanner, forming the initial step in digitizing an object.
A point cloud comprises individual points generated millions of times in 3D space. These points constitute the primary layer of data obtained through a 3D scan, which is subsequently filtered and analyzed. Each point is defined by its coordinates along the X, Y, and Z axes, and may contain information about luminance, intensity, and color in RGB format.
3D laser scanning not only saves time but also enables high precision. The data obtained through point clouds is exceedingly accurate and detailed, a level of detail often unattainable with conventional surveying methods. The advanced point cloud technology contributes to making various BIM use cases more efficient and generating higher-quality models.
Applications of Point Clouds:
3D CAD Models
Using 3D CAD models allows the creation of precise planning views, encompassing both geometric aspects (sections, views, floor plans) and non-geometric ones (room books, component lists).
2D Plans
Detailed 2D drawings can be produced from scanned objects, forming a foundation for further planning.
Virtual 360° Tours
3D scanning enables the creation of virtual 360° tours, facilitating comprehensive exploration of an object.
Use Cases
BIM Models
Scan to BIM: 3D laser scanning generates a point cloud model, which is then transformed into a Building Information Modeling (BIM) model. This simplifies further planning and marketing for architects and investors.
Area Management
Accurate measurements of usable areas and space calculations are crucial in the real estate sector.
Evaluation
Point clouds are useful for analyzing and inspecting surfaces, such as ceilings, walls, and floors.
Monitoring
3D as-built surveys during construction enable easy progress monitoring and form the basis for performance and cost control. Execution tolerances are continuously captured and incorporated into subsequent stages of work.
Shadow Diagrams
Architects use shadow diagrams to analyze the potential impacts of a planned construction project on its surroundings, minimizing negative effects on local ecosystems.
Documentation and Monitoring
3D laser scanning aids digital as-built documentation for facility management and Computer-Aided Facility Management (CAFM) applications during the operational phase. It supports optimized communication with artisans and users.
>b>Point Clouds and Building Information Modeling (BIM)
The integration of point clouds as the basis for Building Information Modeling (BIM) offers an efficient means of information management and communication among project partners in construction and infrastructure.
Utilizing point clouds allows for precise modeling and enhances the quality, timeframe, and cost efficiency of construction projects. This reduces clashes between existing and planned elements in the final design, consequently reducing risks during construction. A collaboratively used 3D model facilitates teamwork within the planning team and supports well-informed decision-making.
If you have questions about laser scanning or other services, feel free to complete the contact form.
