Building Information Modeling - BIM
Building Information Modeling (BIM) - Digital Collaboration in the Construction World
In an increasingly digital world, the construction industry is also undergoing fundamental change. Building Information Modeling (BIM) represents a profound methodological and technological transformation that encompasses all phases of a construction project—from the initial idea to operation. This article provides a comprehensive introduction to the topic and explains why BIM plays a central role today.
In an increasingly digital world, the construction industry is also undergoing fundamental change. Building Information Modeling (BIM) represents a profound methodological and technological transformation that encompasses all phases of a construction project—from the initial idea to operation. This article provides a comprehensive introduction to the topic and explains why BIM plays a central role today.
0. BIM Circular
Integration of BIM and Circular Economy: BIM is seen as a key tool to implement circular economy principles in the construction industry. This includes planning for reuse, recycling, and the reduction of waste and emissions.
Use of Material Passports: By using material passports within BIM models, materials can be efficiently documented and identified for future reuse or recycling.
Deconstruction Planning: BIM enables early planning of deconstruction processes, allowing materials to be selectively recovered and reused.
Modular and Serial Construction: Combining BIM with modular construction methods promotes the reusability of components and supports sustainable upgrades.
Lifecycle Management: BIM supports the management of buildings throughout their entire lifecycle, including operation, maintenance, and eventual deconstruction.
1. What is BIM? - Understanding the BIM Methodology
BIM is not a software but a methodology that digitally models, combines, and records all relevant information about a building. The aim is to create a shared data environment accessible to all project participants - interdisciplinary and throughout the entire lifecycle.
Adopting BIM is a strategic decision. Companies define their goals in advance: should planning become more efficient, execution more precise, or operation more cost-effective? BIM makes this possible - given a clear strategy and measurable objectives.
In Germany, since the federal Ministry for Digital and Transport's (formerly BMVI, now BMDV) “Digital Planning and Building Roadmap,” public infrastructure projects with an estimated volume of over 5 million euros must be planned and executed using BIM from 2020 onwards.
2. BIM Types and Their Benefits: Little BIM, Big BIM, openBIM, closedBIM
Little BIM refers to BIM used within a single company or discipline (e.g., architecture only).
Big BIM involves model-based collaboration across multiple disciplines and organizations.
closedBIM means all project partners use the same software platform.
openBIM relies on open standards such as IFC (Industry Foundation Classes) and BCF (BIM Collaboration Format), allowing vendor-independent data exchange.
Interdisciplinary collaboration is key in complex projects - and BIM is the tool that makes this structured and efficient.
3. AIA and BAP - Two Essential Documents
Two documents form the foundation of a successful BIM project:
AIA (Employer's Information Requirements): Defines what information the client needs, when, and in what quality.
BAP (BIM Execution Plan): Describes how these requirements are met - including processes, data structures, and responsibilities.
Phase 0 is the strategic preparation phase, where the project's lifecycle - planning, building, operating - is considered from the start. The client defines goals, whether and how BIM is used, and formulates the AIA.
Phase 10 refers to the operation and facility management phase, extending beyond traditional planning phases. BIM bridges planning, execution, and operation to optimize costs and ensure transparency in facility management.
Success factors: clear communication, defined processes, and solid data structures.
4. Roles and Responsibilities in a BIM Project (VDI 2552-7)
BIM implementation requires defined roles:
BIM Manager: Oversees strategy and information management.
BIM Coordinator: Interfaces between disciplines, checks models for consistency and coordination.
BIM Modeler: Creates and maintains domain models (architecture, MEP, structural).
BIM User: Uses models for planning, analysis, simulations, or cost estimation.
These roles ensure transparency and accountability.
5. Levels of Detail in Modeling
Three levels ensure information quality:
LOD (Level of Detail): Development level of the model.
LOG (Level of Geometry): Geometric detail level.
LOI (Level of Information): Data without geometric reference (e.g., manufacturer info).
Note: LOD = LOG + LOI
Model types:
PIM (Project Information Model): For planning and construction.
AIM (Asset Information Model): For operations.

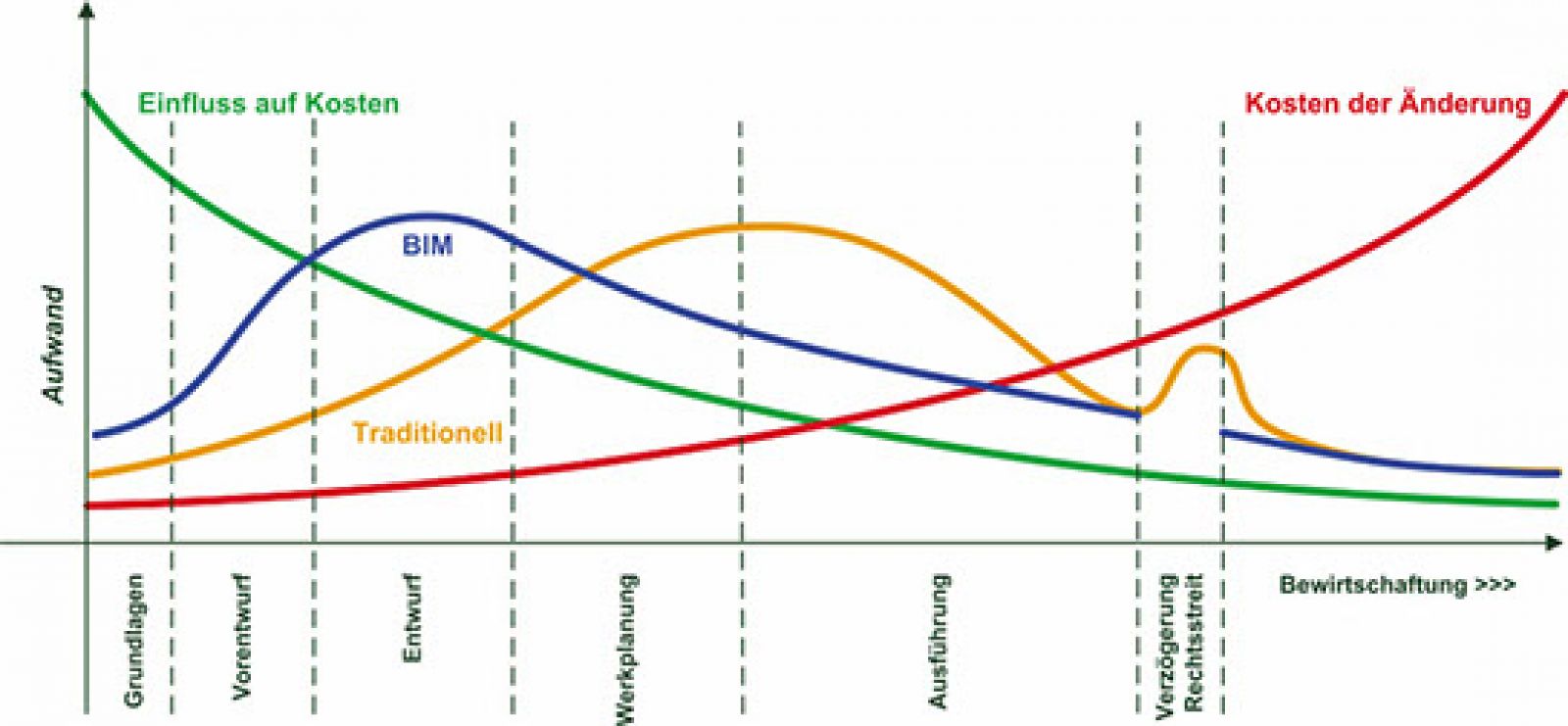

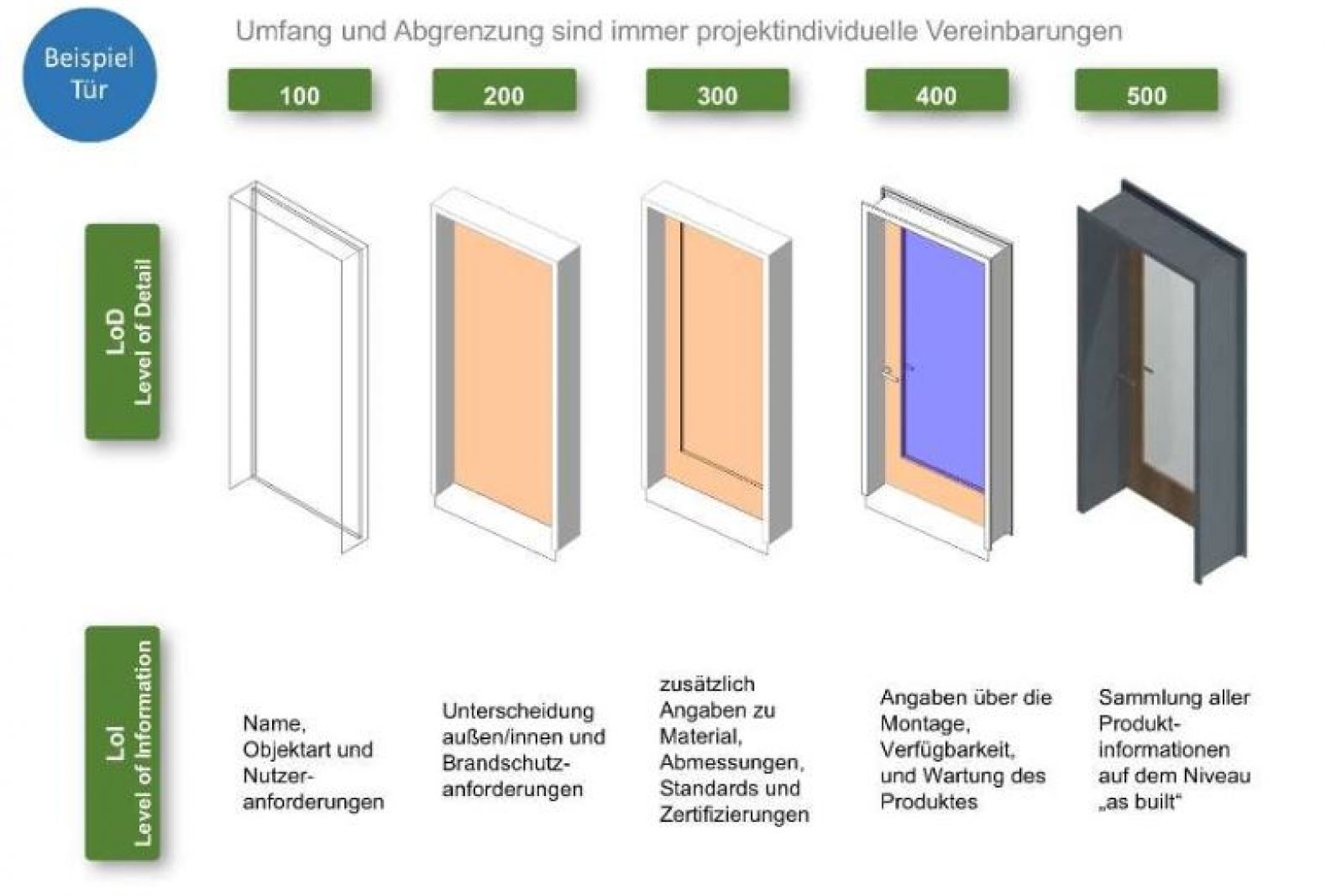

LOD Stages:
LOD 100: Conceptual - basic design intent.
LOD 200: Approximate geometry and structured information.
LOD 300: Accurate geometry, planning approvals.
LOD 400: For manufacturing and installation.
LOD 500: Verified as-built condition, basis for AIM.
These stages ensure appropriate model development and evaluation across phases.

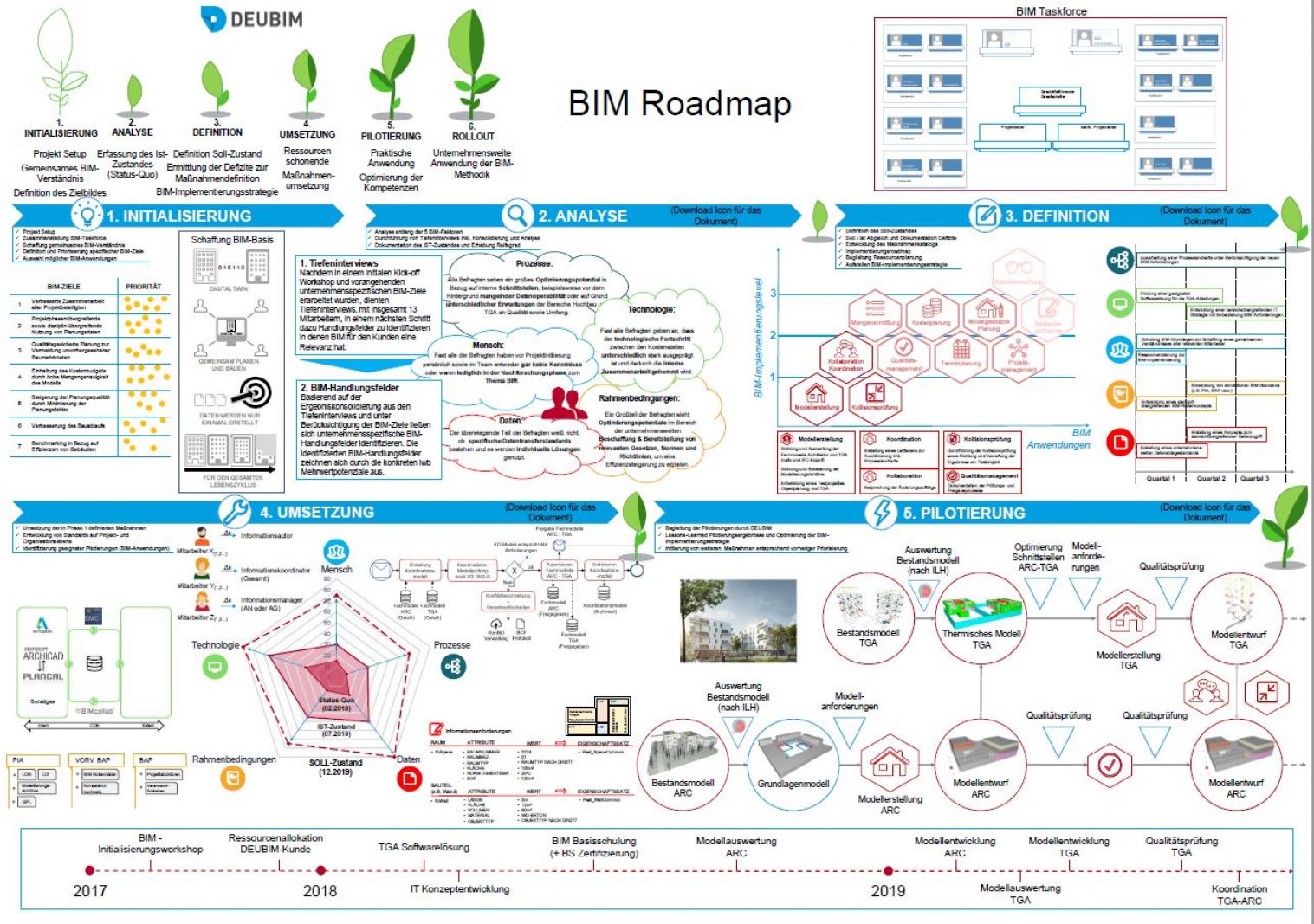

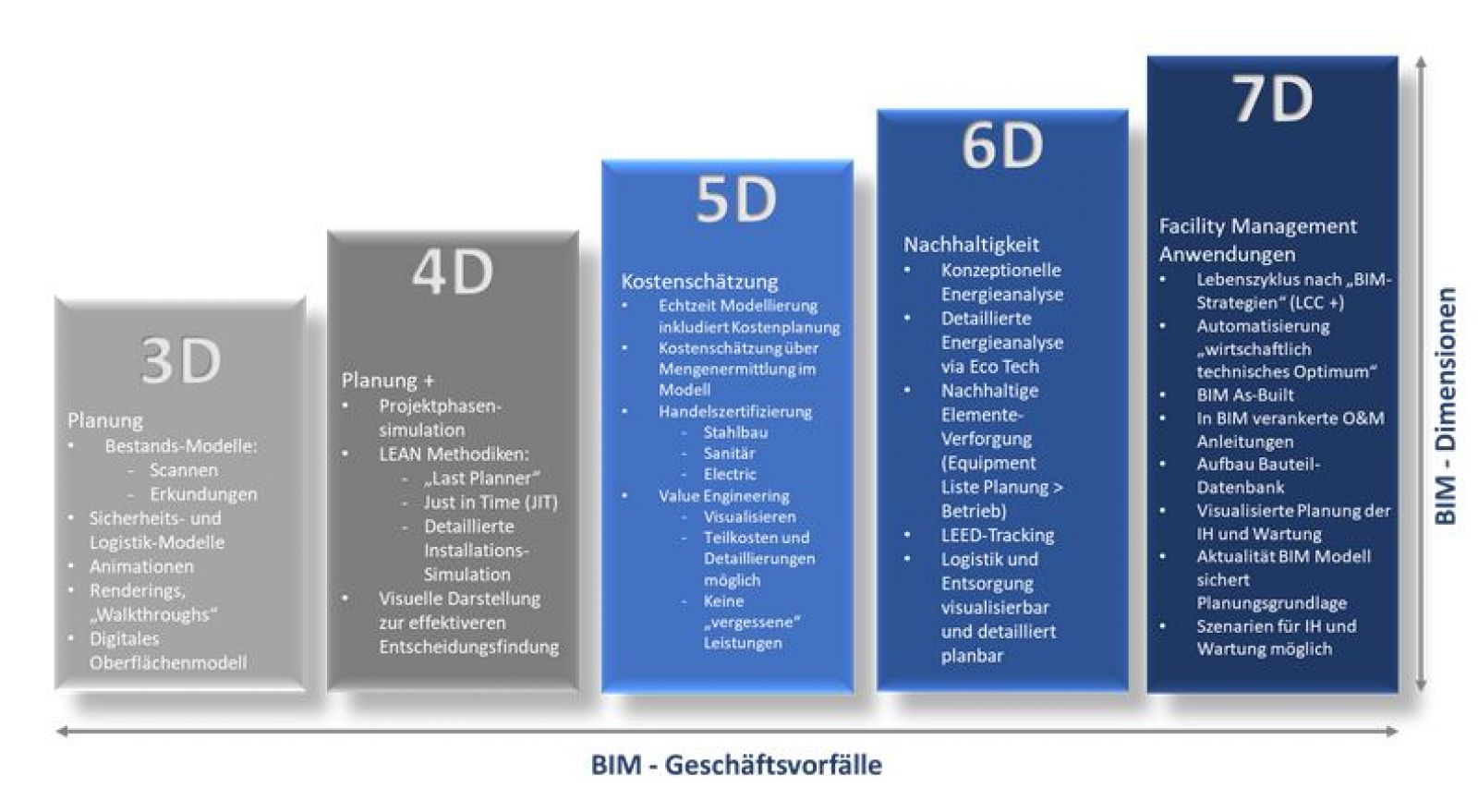

6. BIM Dimensions
3D - Geometry: Visualization, coordination, clash detection.
4D - Time: Linking schedule to model, simulating construction phases.
5D - Cost: Integrating cost data for estimation and value engineering.
6D - Sustainability: Adding data on energy, lifecycle, CO₂, material tracking.
7D - Operation: Use in facility management, maintenance, and optimization.
7. Data Exchange and Collaboration
Open data exchange is vital for BIM success:
buildingSMART develops standards like IFC and BCF for vendor-neutral collaboration.
IFC is the most widely used exchange format.
CDE (Common Data Environment): A shared data space (e.g., server or cloud) defined by ISO 19650.
MVD (Model View Definition): Custom IFC subsets for specific purposes.
IDM (Information Delivery Manual): Describes data processes across lifecycle.
BCF (BIM Collaboration Format): Enables communication across software platforms.
In Revit, coordination points (project base point, survey point, internal origin) are critical for accurate file linking and collaboration, especially in openBIM contexts.
Correct use of coordinates and file linking ensures smooth integration and accurate spatial alignment.
8. Standards and Guidelines
BIM implementation follows global, EU, and national norms:
DIN EN ISO 19650: International standard for lifecycle information management.
VDI 2552: German BIM practice guidelines.
DIN SPEC 91400:Component-based classification, comparable to IFC.
HOAI: BIM tasks are considered special services.
BIM-BVB: Contract clauses for model-based services.
Standards ensure consistency, quality, and comparability.
9. BIM + AI - Artificial Intelligence in Construction
1. BIM as a Foundation for AI
AI needs structured, quality data - BIM provides this.
The effectiveness of AI depends on BIM data quality ("garbage in - garbage out").
2. AI Use Cases
Automated quantity takeoffs.
Predictive models for delays and overruns.
Optimized layouts and logistics.
Drone-based monitoring and QA.
3. Challenges
Data privacy and siloed information.
Lack of standardization.
Trust and control issues.
High integration effort.
4. Outlook
AI as a key technology for future efficiency and sustainability.
AI can automate repetitive tasks.
BIM + AI = Digital assistant for planners and facility managers.
Human expertise remains essential.
10. BIM Glossary - Key Terms short Overview
AIA / BAP: Information requirements and execution plan.
CDE: Common data environment.
Digital Twin: Digital replica of the real building.
IFC: Open data exchange format.
LOD: Level of Detail/Development.
BIM Glossary as PDF with explanations
Conclusion
BIM is far more than digital drafting. It's a structured methodology that redefines collaboration, efficiency, and sustainability in the built environment. Those who invest in BIM today are not just constructing buildings - they are building the future.
Integration of BIM and Circular Economy: BIM is seen as a key tool to implement circular economy principles in the construction industry. This includes planning for reuse, recycling, and the reduction of waste and emissions.
Use of Material Passports: By using material passports within BIM models, materials can be efficiently documented and identified for future reuse or recycling.
Deconstruction Planning: BIM enables early planning of deconstruction processes, allowing materials to be selectively recovered and reused.
Modular and Serial Construction: Combining BIM with modular construction methods promotes the reusability of components and supports sustainable upgrades.
Lifecycle Management: BIM supports the management of buildings throughout their entire lifecycle, including operation, maintenance, and eventual deconstruction.
1. What is BIM? - Understanding the BIM Methodology
BIM is not a software but a methodology that digitally models, combines, and records all relevant information about a building. The aim is to create a shared data environment accessible to all project participants - interdisciplinary and throughout the entire lifecycle.
Adopting BIM is a strategic decision. Companies define their goals in advance: should planning become more efficient, execution more precise, or operation more cost-effective? BIM makes this possible - given a clear strategy and measurable objectives.
In Germany, since the federal Ministry for Digital and Transport's (formerly BMVI, now BMDV) “Digital Planning and Building Roadmap,” public infrastructure projects with an estimated volume of over 5 million euros must be planned and executed using BIM from 2020 onwards.
2. BIM Types and Their Benefits: Little BIM, Big BIM, openBIM, closedBIM
Little BIM refers to BIM used within a single company or discipline (e.g., architecture only).
Big BIM involves model-based collaboration across multiple disciplines and organizations.
closedBIM means all project partners use the same software platform.
openBIM relies on open standards such as IFC (Industry Foundation Classes) and BCF (BIM Collaboration Format), allowing vendor-independent data exchange.
Interdisciplinary collaboration is key in complex projects - and BIM is the tool that makes this structured and efficient.
3. AIA and BAP - Two Essential Documents
Two documents form the foundation of a successful BIM project:
AIA (Employer's Information Requirements): Defines what information the client needs, when, and in what quality.
BAP (BIM Execution Plan): Describes how these requirements are met - including processes, data structures, and responsibilities.
Phase 0 is the strategic preparation phase, where the project's lifecycle - planning, building, operating - is considered from the start. The client defines goals, whether and how BIM is used, and formulates the AIA.
Phase 10 refers to the operation and facility management phase, extending beyond traditional planning phases. BIM bridges planning, execution, and operation to optimize costs and ensure transparency in facility management.
Success factors: clear communication, defined processes, and solid data structures.
4. Roles and Responsibilities in a BIM Project (VDI 2552-7)
BIM implementation requires defined roles:
BIM Manager: Oversees strategy and information management.
BIM Coordinator: Interfaces between disciplines, checks models for consistency and coordination.
BIM Modeler: Creates and maintains domain models (architecture, MEP, structural).
BIM User: Uses models for planning, analysis, simulations, or cost estimation.
These roles ensure transparency and accountability.
5. Levels of Detail in Modeling
Three levels ensure information quality:
LOD (Level of Detail): Development level of the model.
LOG (Level of Geometry): Geometric detail level.
LOI (Level of Information): Data without geometric reference (e.g., manufacturer info).
Note: LOD = LOG + LOI
Model types:
PIM (Project Information Model): For planning and construction.
AIM (Asset Information Model): For operations.
LOD Stages:
LOD 100: Conceptual - basic design intent.
LOD 200: Approximate geometry and structured information.
LOD 300: Accurate geometry, planning approvals.
LOD 400: For manufacturing and installation.
LOD 500: Verified as-built condition, basis for AIM.
These stages ensure appropriate model development and evaluation across phases.
6. BIM Dimensions
3D - Geometry: Visualization, coordination, clash detection.
4D - Time: Linking schedule to model, simulating construction phases.
5D - Cost: Integrating cost data for estimation and value engineering.
6D - Sustainability: Adding data on energy, lifecycle, CO₂, material tracking.
7D - Operation: Use in facility management, maintenance, and optimization.
7. Data Exchange and Collaboration
Open data exchange is vital for BIM success:
buildingSMART develops standards like IFC and BCF for vendor-neutral collaboration.
IFC is the most widely used exchange format.
CDE (Common Data Environment): A shared data space (e.g., server or cloud) defined by ISO 19650.
MVD (Model View Definition): Custom IFC subsets for specific purposes.
IDM (Information Delivery Manual): Describes data processes across lifecycle.
BCF (BIM Collaboration Format): Enables communication across software platforms.
In Revit, coordination points (project base point, survey point, internal origin) are critical for accurate file linking and collaboration, especially in openBIM contexts.
Correct use of coordinates and file linking ensures smooth integration and accurate spatial alignment.
8. Standards and Guidelines
BIM implementation follows global, EU, and national norms:
DIN EN ISO 19650: International standard for lifecycle information management.
VDI 2552: German BIM practice guidelines.
DIN SPEC 91400:Component-based classification, comparable to IFC.
HOAI: BIM tasks are considered special services.
BIM-BVB: Contract clauses for model-based services.
Standards ensure consistency, quality, and comparability.
9. BIM + AI - Artificial Intelligence in Construction
1. BIM as a Foundation for AI
AI needs structured, quality data - BIM provides this.
The effectiveness of AI depends on BIM data quality ("garbage in - garbage out").
2. AI Use Cases
Automated quantity takeoffs.
Predictive models for delays and overruns.
Optimized layouts and logistics.
Drone-based monitoring and QA.
3. Challenges
Data privacy and siloed information.
Lack of standardization.
Trust and control issues.
High integration effort.
4. Outlook
AI as a key technology for future efficiency and sustainability.
AI can automate repetitive tasks.
BIM + AI = Digital assistant for planners and facility managers.
Human expertise remains essential.
10. BIM Glossary - Key Terms short Overview
AIA / BAP: Information requirements and execution plan.
CDE: Common data environment.
Digital Twin: Digital replica of the real building.
IFC: Open data exchange format.
LOD: Level of Detail/Development.
BIM Glossary as PDF with explanations
Conclusion
BIM is far more than digital drafting. It's a structured methodology that redefines collaboration, efficiency, and sustainability in the built environment. Those who invest in BIM today are not just constructing buildings - they are building the future.
